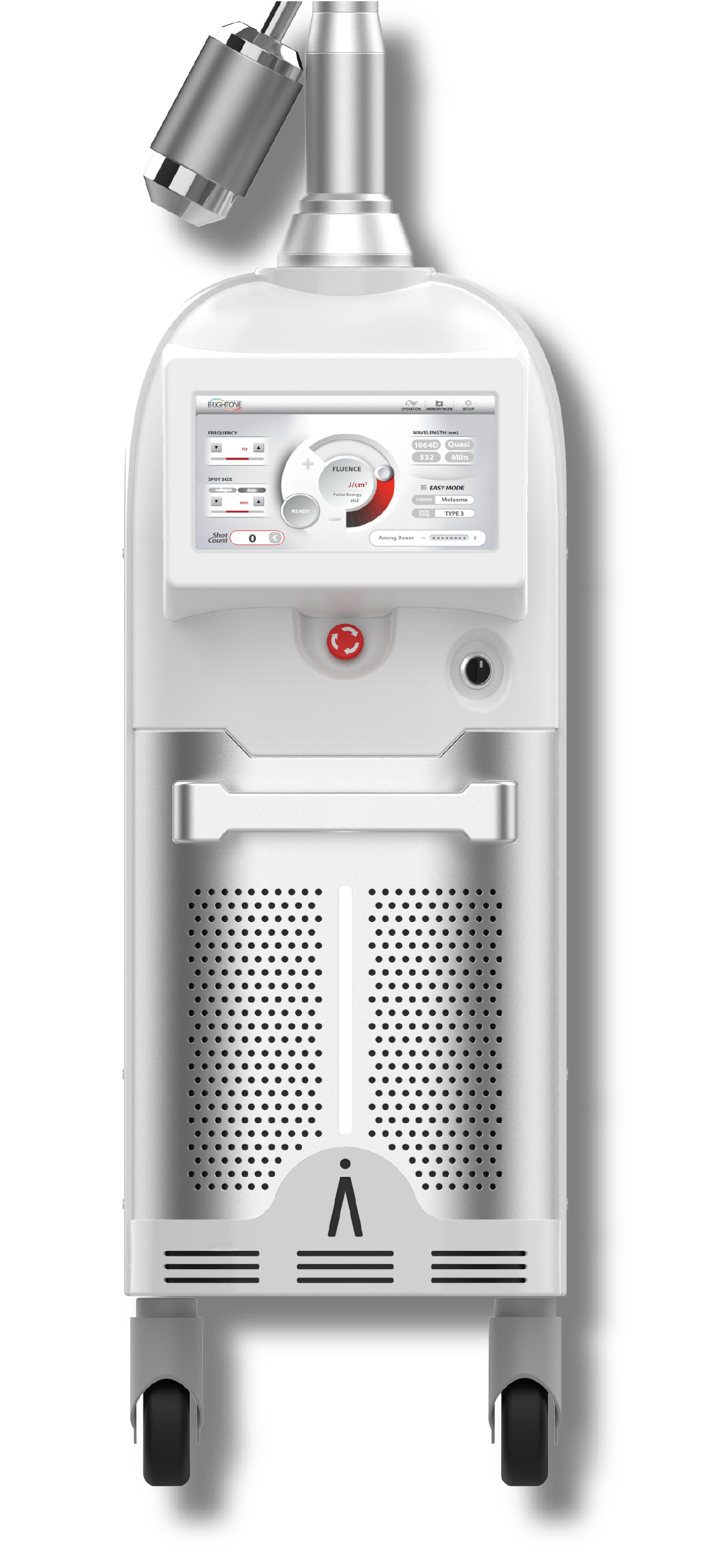

Controlled Energy. Intelligent Modulation.

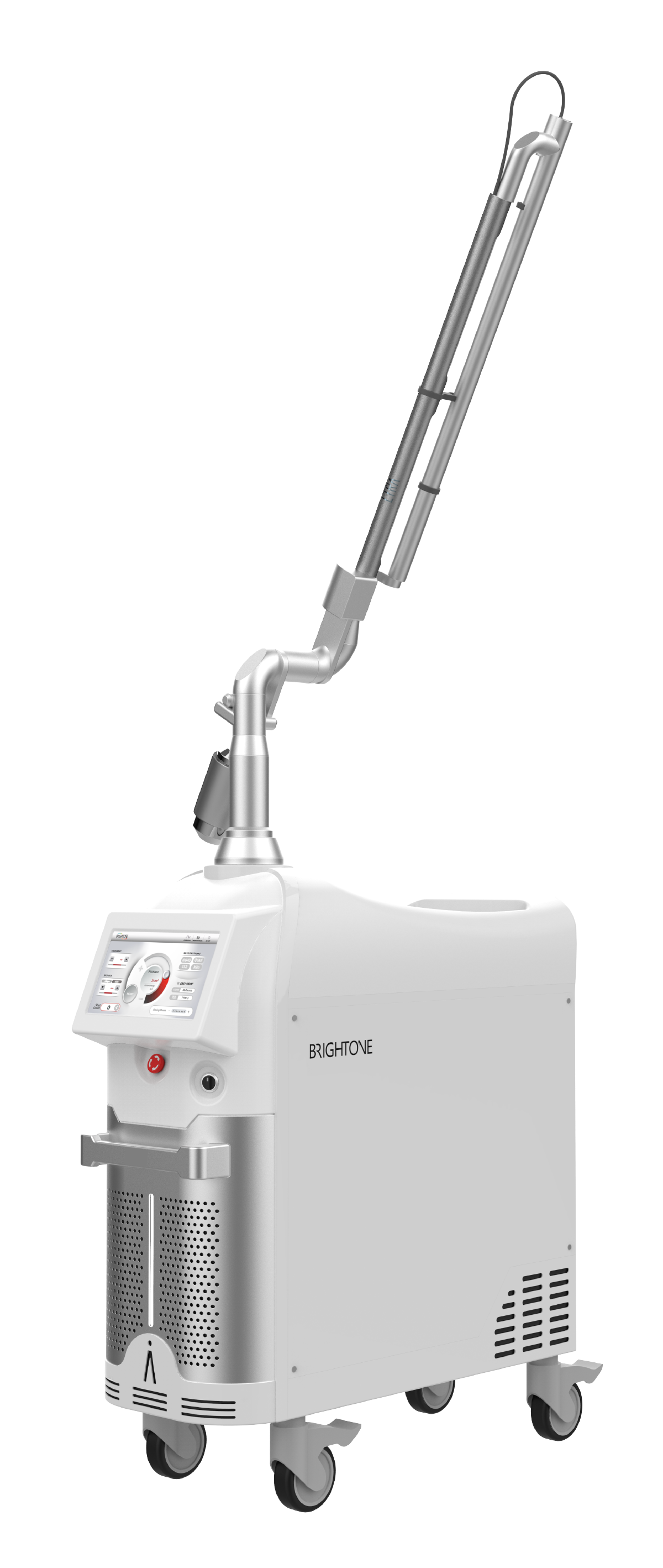

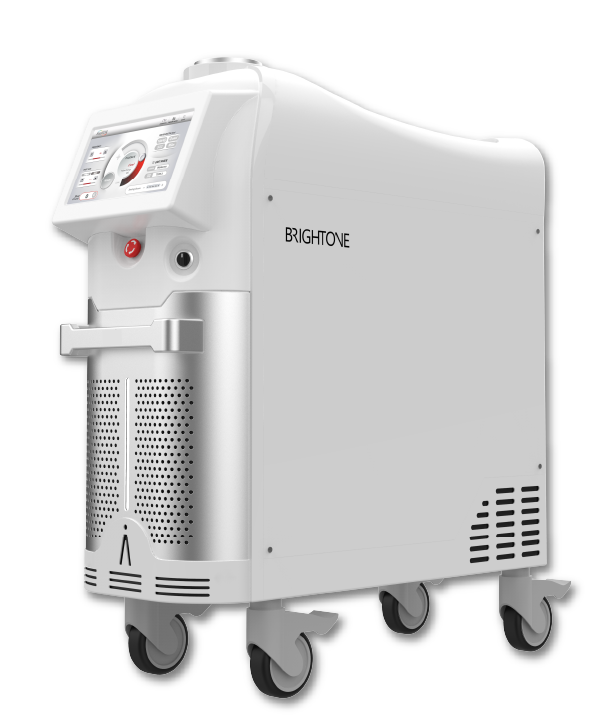

Brightone is a Q-Switched laser platform engineered to deliver stable, high-intensity nanosecond pulses with precise control. The system supports multi-wavelength operation through a modular optical design, with Multi-Pulse Energy Modulation available on the 1064 nm wavelength.
Designed to generate controlled photomechanical energy, Brightone is indicated for the treatment of tattoos and benign pigmented lesions in accordance with cleared indications for use.
With consistent energy output, a uniform beam profile, and adjustable parameters, Brightone provides practitioners with adaptable energy control across approved aesthetic applications.
Multi-Pulse Energy
Modulation
LIOB Fractional Energy
Delivery
Multi-Wavelength
Flexibility
Multi-Pulse Energy Modulation
Multi-Pulse Energy Modulation is Brightone’s signature energy delivery system, designed to break laser energy into multiple precisely timed pulses for enhanced control. By distributing energy over six rapid-pulses, the system moderates peak intensity, balance energy, and enhances photomechanical effects, giving practitioners greater procedural flexibility and control.
Single Pulse
Double Pulse

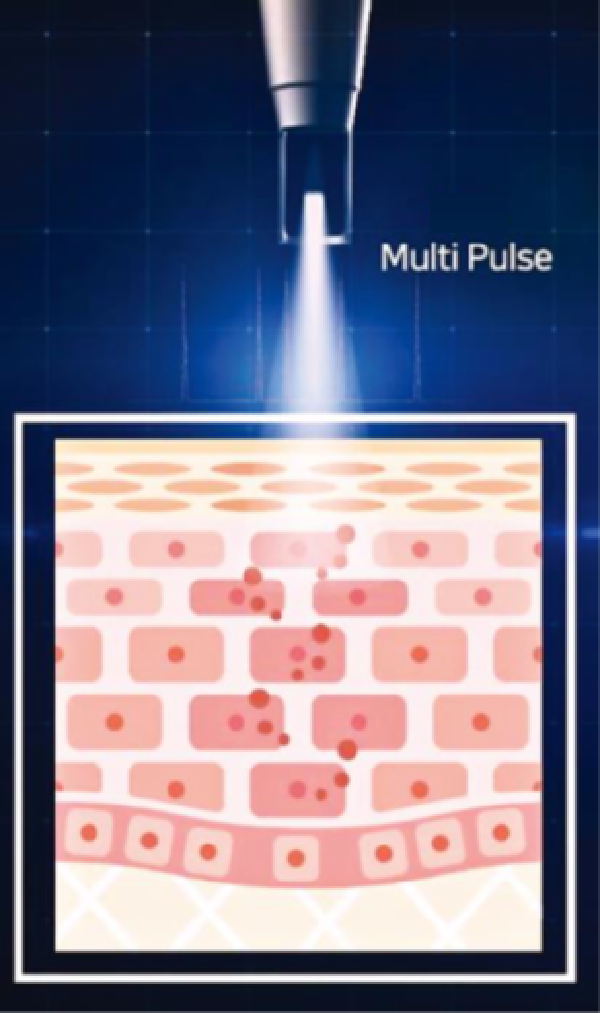

Multi Pulse
LIOB Fractional Energy Delivery
Non-ablative fractional energy generated beneath the skin surface
Brightone supports Laser-Induced Optical Breakdown (LIOB) through a dedicated Micro Lens Array (MLA) handpiece on the 1064 nm wavelength.
The MLA optically divides a single laser beam into multiple focused micro-beams. These beams converge at controlled depths below the epidermis, where sufficient energy density creates localized optical breakdown and micro-cavitation effects.
Because the energy is focused beneath the surface rather than absorbed superficially, a uniform fractional pattern of microscopic treatment is formed through a primarily photomechanical interaction.
Focused laser energy creates Laser-Induced Optical Breakdown (LIOB), forming localized optical breakdown and micro-cavitation effects within the dermis.
Device Features
Refined Power. Intelligent Design.*
Modular Optical Handpieces
Application-Specific Optical Design.
Each handpiece is engineered for specific wavelengths, spot sizes, and procedural applications. The modular optical system supports adaptable energy delivery across a range of aesthetic indications.
Homogeneous Beam Profile & Stable Fluence
Uniform Energy Distribution.
Precision optics help maintain uniform fluence distribution and stable spot geometry, reducing the potential for localized hotspots and supporting controlled energy delivery.
Multi Modal Platform
Expandable. Efficient. Future-Ready.
A single base system supports multiple treatment modalities through interchangeable handpieces. This modular configuration simplifies workflow while supporting expanded treatment capabilities.
Double Chamber Supply for Stability
Stable Output for Continuous Operation.
The dual-chamber power supply supports stable laser output during repeated operation. The system is rated for up to 100,000 shots, supporting reliable performance in high-volume clinical environments.
Performance Without Compromise
Designed for versatility and precision, this advanced Q-Switched laser platform features enhanced pulse control and specialized optical handpieces to support a broad range of treatment applications. The system is engineered to provide flexible energy delivery and expanded procedural capabilities for modern aesthetic practices.

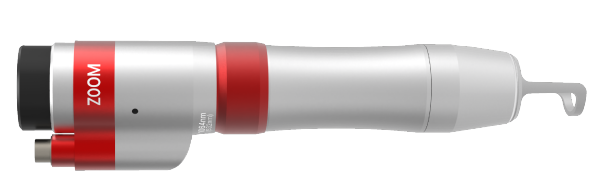

Zoom Collimation Handpiece
- Wavelength: 1064nm / 532nm
- Spot Size: 2-10mm (1064nm),
1-7mm (532nm) - Works across all pulse modes

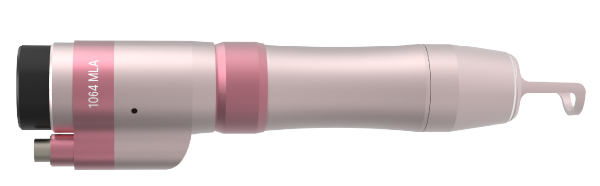

MLA (Micro Lens Array) Handpiece
- Wavelength: 1064nm
- Spot Size: 4, 7, 10mm
- Working Modes: Single, Double, Multi

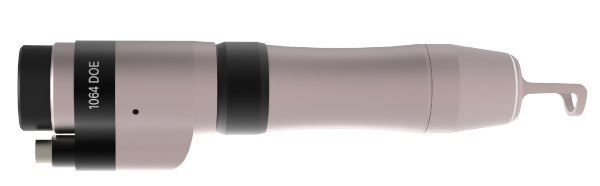

DOE (Diffractive Optical Element) Handpiece
- Wavelength: 1064nm
- Spot Size: 5mm (64 micro-spots)
- Working Modes: Single, Double, Multi, Quasi

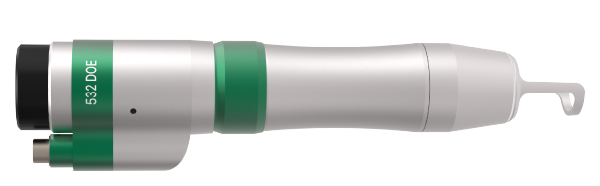

DOE 532 Handpiece
- Wavelength: 532nm for Red, Orange, and Purple pigments
- Spot Size: 4mm (81 micro-spots)
- Working Mode: 532 Q-Switched

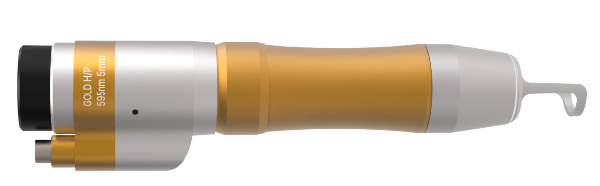

GOLD / DYE Handpiece
- Wavelength: 595nm for sky blue tattoo removal
- Spot Size: 5mm
- Working Mode: 532 Q-Switched

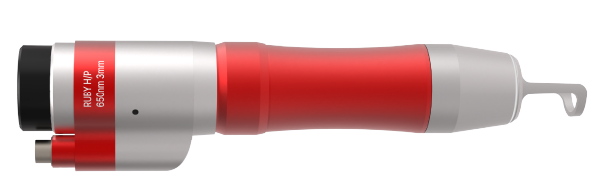

RUBY Handpiece
- Wavelength: 650nm for green tattoo removal
- Spot Size: 3mm
- Working Mode: 532 Q-Switched
Single Pulse Mode
- Direct Photomechanical impact
- High peak power output
- Ideal for spot treatments

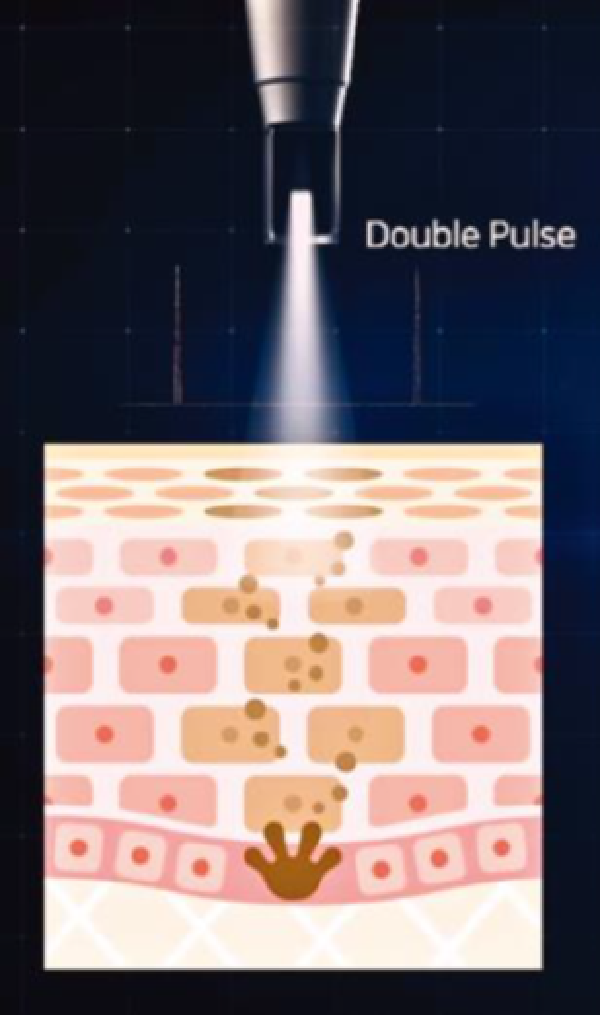

Double Pulse Mode
- Split energy for controlled shock
- Medium peak power output
- Controlled heat diffusion
Multi Pulse Mode
- Gradual energy stacking
- Enhanced safety profile
- Effective pigment fragmentation
Quasi Mode
- Extended long pulse for gentle toning
- Controlled heat diffusion
- Ideal for skin rejuvenation
Expanded Indication, Greater Clarity*
Strong Clinical RESULTS‡
Visible improvement across a treatment series, which may support patient satisfaction.
Before
After
Before
After
Before
After
Before
After
Before
After
Before
After
Before
After
Laser Hair Removal - results after 3 sessions
